Alps

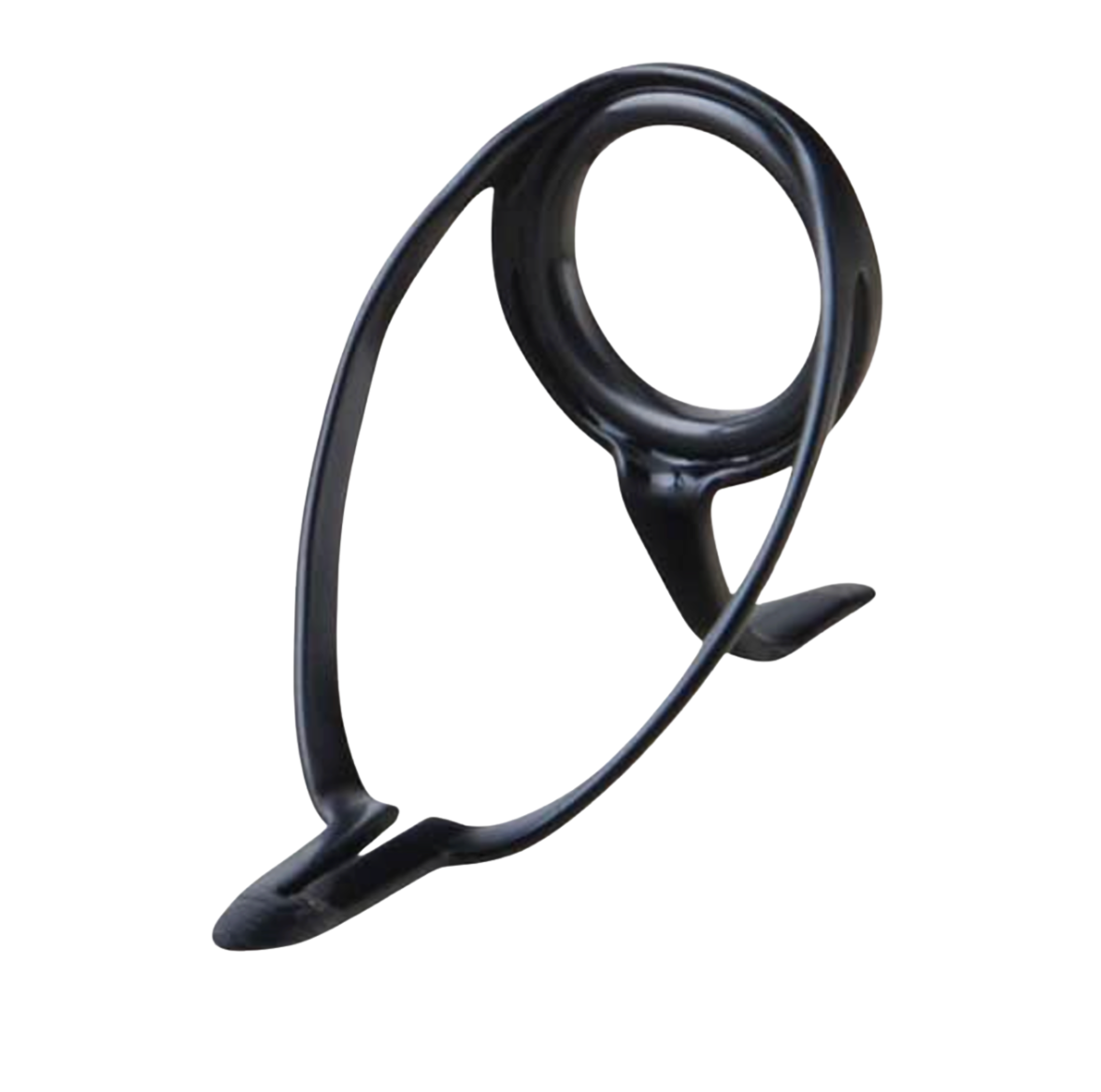

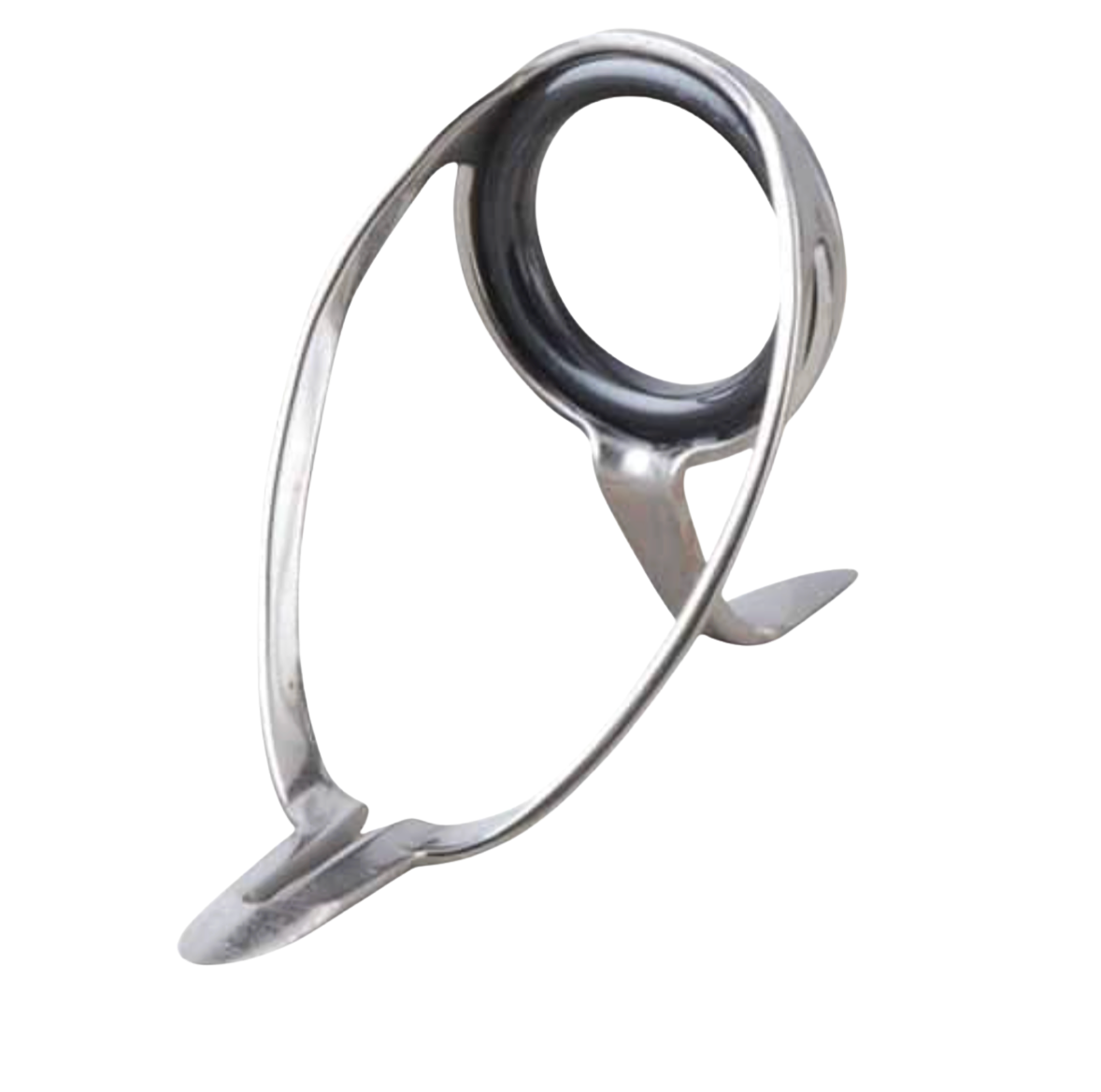

Alps Medium-Heavy XN Stainless Steel Guides

Alps Medium-Heavy XN Stainless Steel Guides

Regular price $3.62 USD
Regular price Sale price $3.62 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
Quantity

Since their inception, the ALPS regular XN guides have proven to be ideal when looking for a casting guide in medium or medium-heavy applications. The ALPS regular XN guides are for 25-50lb test, and boast SS316 stainless steel frame construction that also provides extreme corrosion resistance. The ALPS regular XN guides have the unique recessed ring design (RRD) creating a wider gluing surface between the ceramic ring and guide frame. This inevitably enhances the bond between the ring and frame while also protecting the ring from impact. Like all regular XN guides, the unique frame design virtually eliminates all line wrap while increasing strength without adding needless weight.

SIZE RING OD RING ID LENGTH HEIGHT WEIGHT WEIGHT (OZ)
8 8.00mm 5.50mm 27.80mm 14.10mm 0.87g 0.030
10 10.00mm 6.80mm 33.48mm 17.00mm 1.40g 0.049
12 12.00mm 8.10mm 37.70mm 19.00mm 1.96g 0.069
16 16.00mm 10.80mm 45.97mm 24.60mm 2.97g 0.105
20 20.00mm 13.70mm 57.01mm 32.13mm 5.57g 0.197
25 25.00mm 17.60mm 66.72mm 40.93mm 7.98g 0.281
30 30.00mm 23.20mm 82.64mm 51.21mm 12.42g 0.438
40 40.00mm 28.30mm 92.45mm 62.92mm 19.19g 0.677
