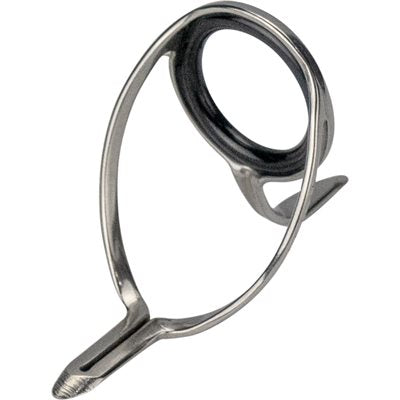

Alps Medium MXN Stainless Steel Guides

Alps Medium MXN Stainless Steel Guides

Regular price $3.21 USD
Regular price Sale price $3.21 USD
Sale Sold out
Shipping calculated at checkout.
Ring Color
Size
Quantity

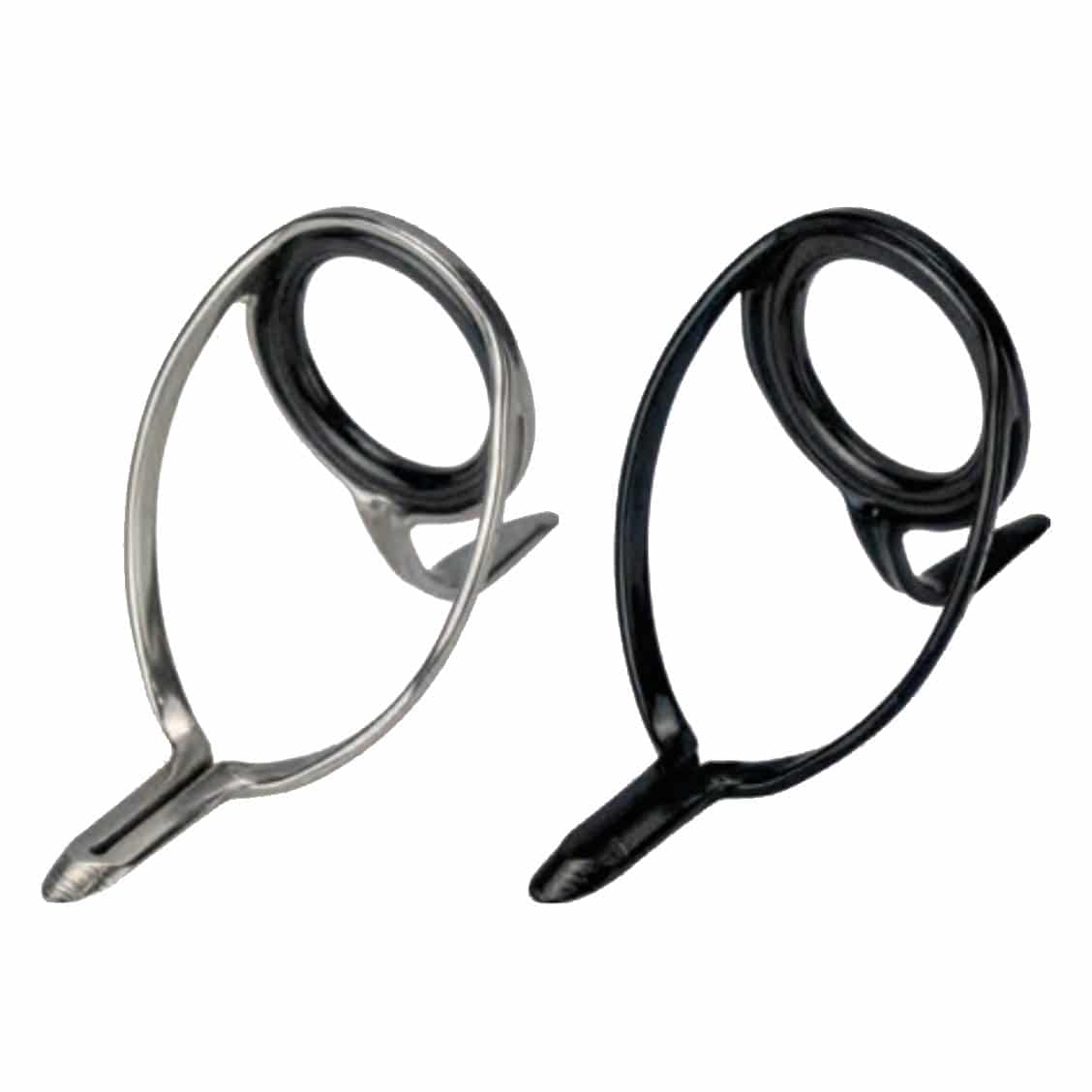

Nearly identical to the ALPS medium MXN guide in titanium, this is the stainless steel version to turn to when building your rod. These medium MXN guides are superb when looking for a casting guide for light to medium applications. Rated for 12-30lb test, due to the SS316 stainless steel frame construction, it also provides extreme corrosion resistance. ALPS medium MXN guides in stainless steel feature the sought out recessed ring design (RRD) creating a wider gluing surface between the ceramic ring and guide frame, enhancing the bond between the ring and frame while also protecting the ring from impact. One of the many unique features, that sets the medium MXN guides apart from the competition, is the frame design. This frame design nearly eliminates all line wrap while increasing strength without adding needless weight.

SIZE RING OD RING ID LENGTH HEIGHT WEIGHT WEIGHT (OZ)
6 6.00mm 3.70mm 17.43mm 9.54mm 0.30g 0.011
7 7.00mm 4.70mm 18.67mm 11.34mm 0.36g 0.012
8 8.00mm 5.50mm 22.96mm 12.19mm 0.60g 0.021
10 10.00mm 6.90mm 27.17mm 15.09mm 0.95g 0.033
12 12.00mm 8.30mm 27.68mm 18.15mm 1.19g 0.042
16 16.00mm 10.80mm 35.56mm 22.51mm 2.16g 0.076
20 20.00mm 13.90mm 46.78mm 31.11mm 3.41g 0.120
25 25.00mm 17.60mm 53.89mm 41.08mm 6.42g 0.226
30 30.00mm 23.54mm 66.7mm 21.35mm 9.18g 0.324
